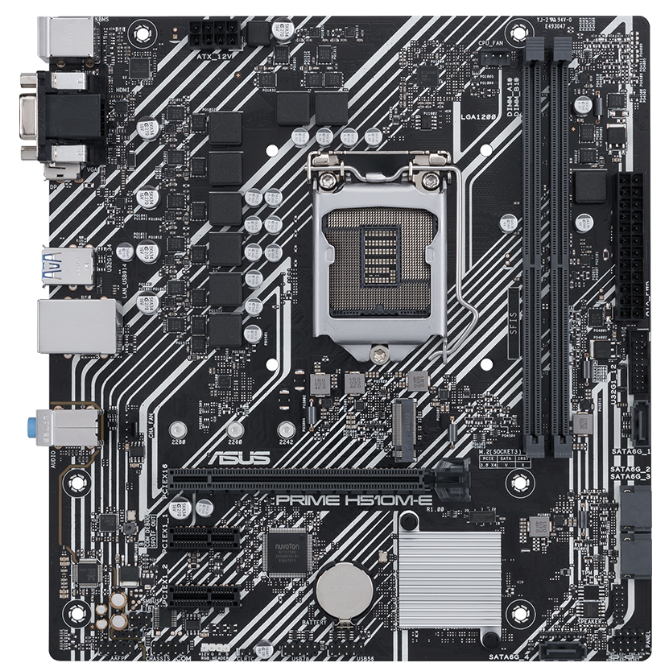

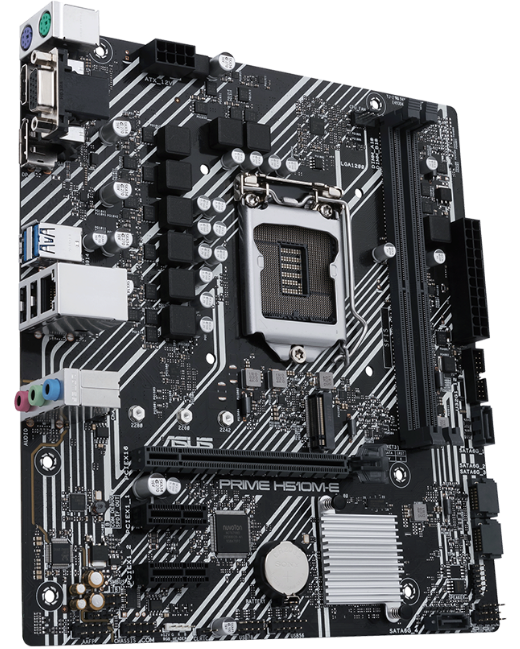

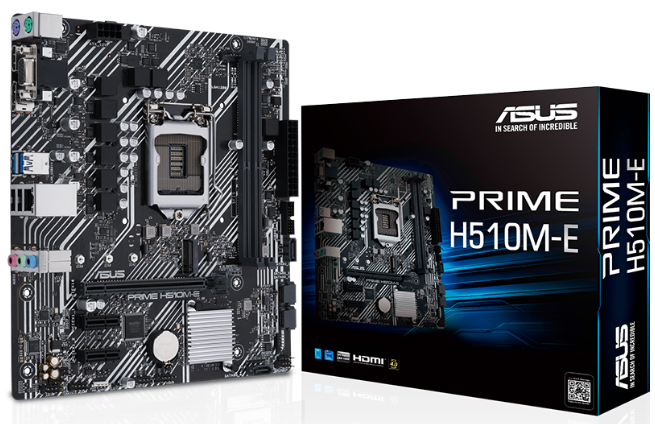

Mainboard ASUS PRIME H510M-E

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME H510M-D

CPU hỗ trợ

Intel

Chipset

H510

RAM hỗ trợ

2 x DIMM SLOTS, tối đa 64GB DDR4
3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th Gen processors support PCIe 4.0 x16

- Intel® 10th Gen processors support PCIe 3.0 x16

Intel® H510 Chipset

1 x PCIe 3.0 x1 slot

Ổ cứng hỗ trợ

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H510 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

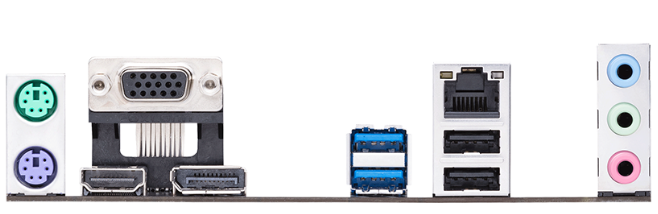

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet port

3 x Audio jacks

1 x COM port

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Kích cỡ

microATX
22.6cm x 20.3cm
